Sheet T33Faceted gouge cuts$20

Facet Faceted gouge cuts

Name: Facet CNC texture file
Brand: Roxford Carpentry
SKU: facet
Price: 20.00 USD
Availability: InStock

A field of irregular, hand-cut pits that never repeat in an obvious way. Cut with a 3/4 in ball nose, the sharp facets soften into a rounded, scooped finish.

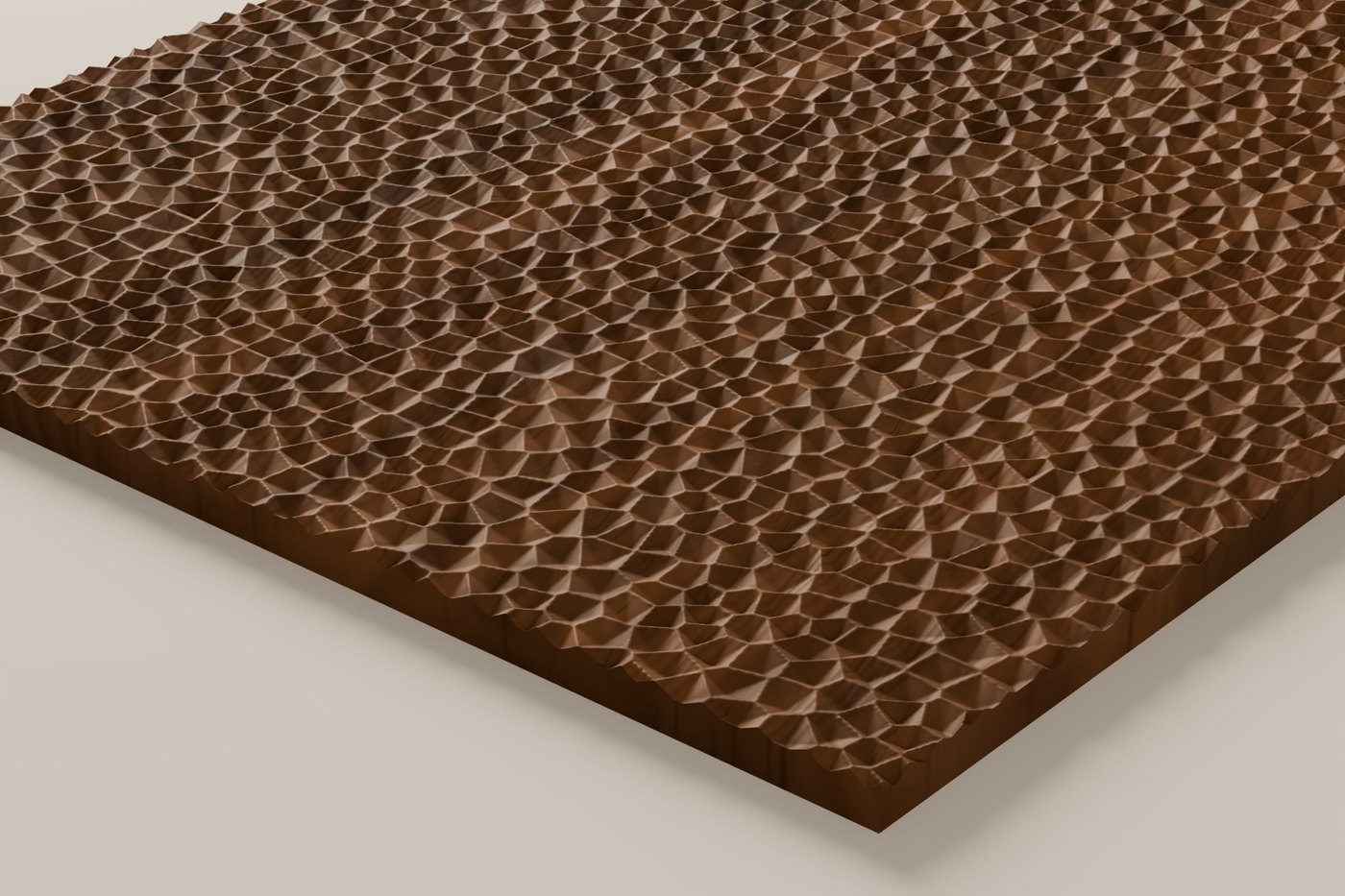

Facet CNC carving texture rendered in walnut, seen at an angle — Rendered in walnut, low raking light

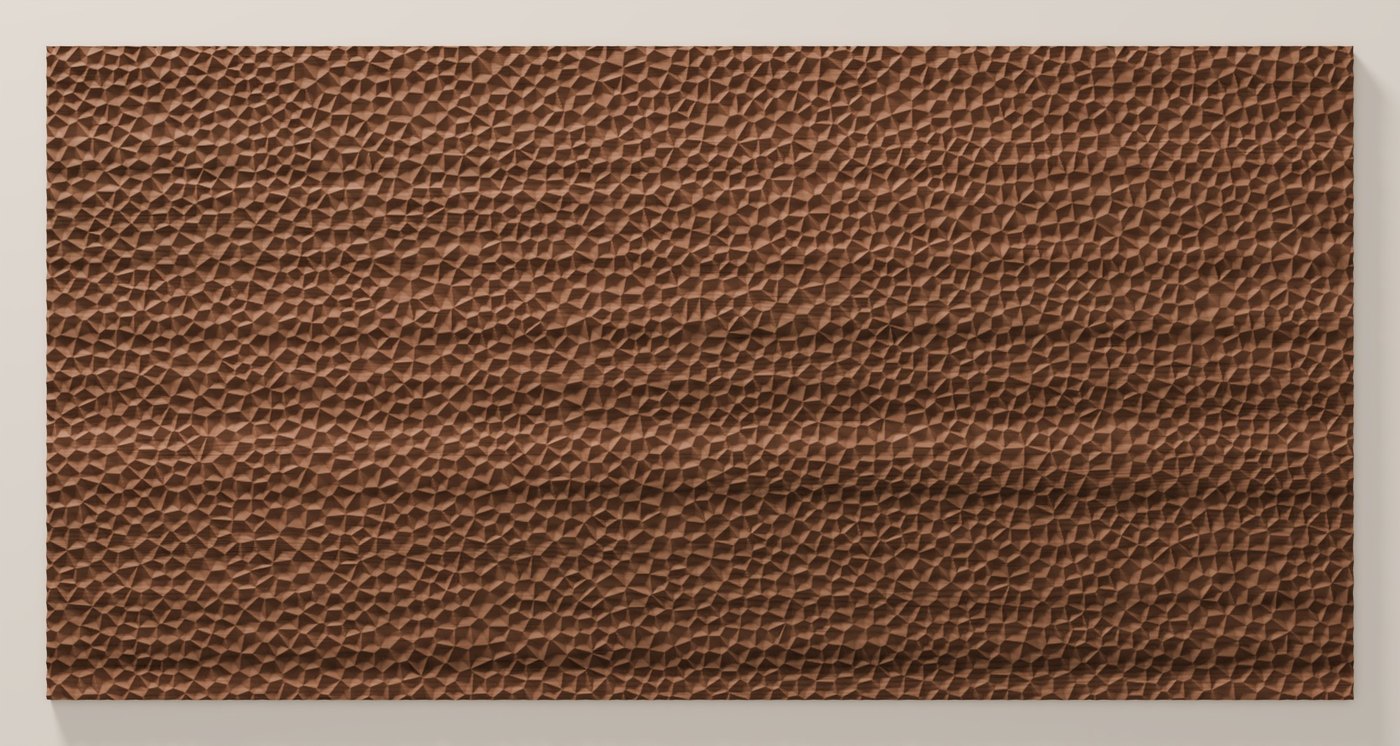

Facet texture seen from directly above — Plan view, straight down

Relief0.194 in

Panel24 × 48 in

TilesNo

Price$20

Buy on Etsy · $20 →

Sold on its own, not part of a pack.

In the download

What you get

Full 24 × 48 in panel as a watertight STL, in inches
16-bit grayscale heightmaps at 25 and 50 px/in
12 × 12 in test tile, STL and PNG
One-page cut sheet PDF with bit, settings and steps
Works in Vectric Aspire, VCarve Pro, Carveco, Fusion 360 and Carbide Create Pro
Licence to sell what you carve (not the files)

Cut sheet

How to cut it

Cut the 12 × 12 in test tile on scrap first.
Face the stock flat and zero Z on the top surface.
Import the STL or the 50 px/in heightmap at 24 × 48 in, 0.194 in deep.
Finish with a 3/4 in ball nose at 0.024 in stepover, raster along the 48 in length.
Panels larger than 24 × 48 in: scale the 50 px/in map; this design does not repeat.
Knock off fuzz with a nylon brush or 320 grit, then finish as normal.

Feeds and speeds on the cut sheet are calculated starting points. Run the test tile first and adjust for your machine.
